Features
- Up to 2.5 hours of run-time per charge.
- Ergonomic handle with reversing switch, horn and dual butterfly.
- Thumb controls are intuitive and allow for safe, accurate operation.
- Strong 48V permanent magnet drive motor.
- Battery discharge indicator.

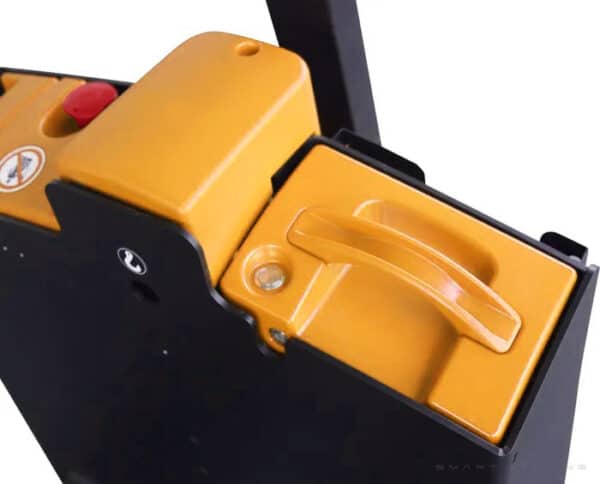

48V LI-ION BATTERY
The MEFL20 electric pallet truck comes with a purpose build 48V Li-Ion battery. The Battery can be exchanged single-handed to be replaced with a new battery for multi-shift operation. It is also equipped with an LED light to help visibility in dark corners when picking up a pallet. The truck is available with external and integrated charger.

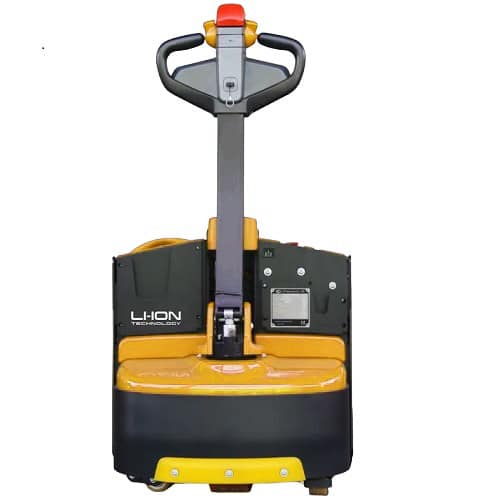

NEW, ERGONOMIC TILLER HEAD
Our new Li-Ion pallet truck comes with a brand-new tiller head. Designed to be more ergonomic and give additional features to the user, we equipped the tiller head with a full-colour display and the possibility to show not only the state of charge but also additional information about the truck, potential error codes and driving parameters on the display.
SIMPLE SERVICE CONTROLLER
The brushless DC Curtis controller is a real revolution. Due to the Plug & Play concept, the controller can be exchanged single handed in case of damage. This reduces potential downtimes significantly and in case of fleets can also make the error search very quick and easy even for an untrained customer.
Specifications
Model | MEFL20 |
Capacity | 2000kg |
Weight Including Battery | 250kg |
Lift Height | 140mm |
Lowered Height | 82.5mm |
Fork Dimensions | 55x170x1170mm |
Overall Length | 1592mm |
Overall Width | 645 / 625mm |
Turning radius | 1428mm |
Laden travel speed | 5km/h |
Unladen travel speed | 5.5km/h |
Battery voltage | 48V / 30Ah (li-ion) |
